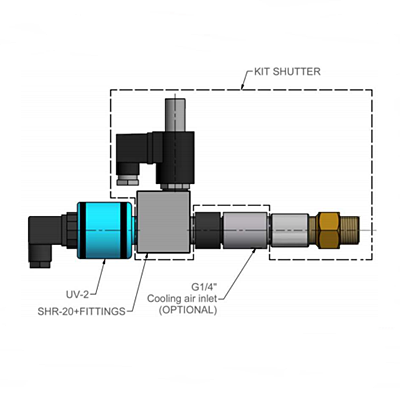

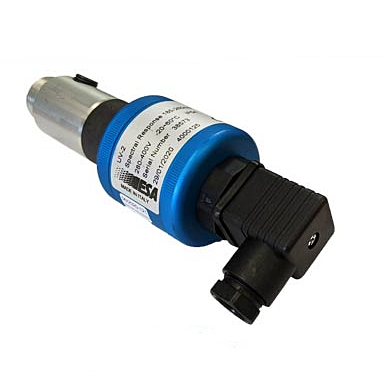

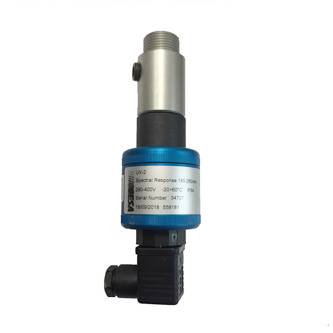

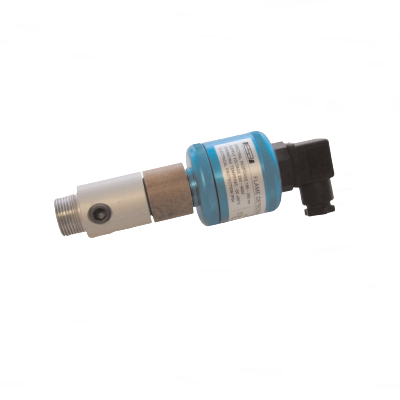

The ESA Pyronics 74903 is a UV-2 Flame Detector with 10673 3/4" CHLG-2 Support. This flame detector is used in combination with Shutter SHR for burner operation applications.
The flame detector is divided into 4 parts:
The flame detector has a 3/4" thread to connect to the Shutter SHR die-cast aluminum body. In the UV tube section, it is filled with gas that will be ionized by the UV-rays. Applicable to other ESA electronic systems. When ESA UV-2 Flame Detector is in used, it must be operated within its range.
The UV-2 flame detector should be handled with care and you need to take note of the hazards. Remember to cover the photo-tube housing for the reason that it produces UV radiation during flame detection which can be captured by other photo-tubes. Also, be cautious in handling and prevent falling that may damage the detector quartz bulb. Consistently check and clean the photo-tube to prevent dust or dirt accumulation which can affect the signal. Only unipolar cables can be used.
|Operating Temperature||-20 to + 60C|
|Spectral Response||185-260 nm|
|Discharge Starting Voltage||(with UV radiation) 280V|
|Recommended Operating Voltage||325 +/- 25V|
|Recommended Discharge Current||100μA|
|Life Service with Continuous Discharge||>10,000 hrs.|
Download Product Information:
ESA Pyronics 74903 UV-2 Flame Detector Technical Datasheet
ESA Pyronics Shutter SHR for UV-2 Series Technical Datasheet
