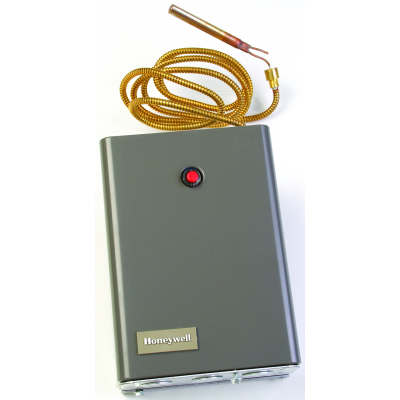

Honeywell R8182D1079 Multifunction Gas Aquastat

Honeywell R8182D1079 Multifunction Gas Aquastat
Images for general purposes only. Actual may be different than depicted.
Honeywell R8182D1079 Multifunction Gas Aquastat

Honeywell R8182D1079 Multifunction Gas Aquastat

SKU: R8182D1079
Rating:
Quantity Price Stock
8
Usually Ships 1-2 Weeks
$1,011.98     /ea
8
0
$0.00
0
$0.00
0
R8182D1079
Honeywell R8182D1079 Multifunction Gas Aquastat

Immersion type Aquastat controller and oil burner primary control provides high limit and low limit/circulator control for oil-fired hydronic heating systems.

Features:
  • Use in intermittent ignition applications.
  • Capable of zone control with zone valves.
  • Circulator zone control with ZC and ZR terminals on R8182D,E,H,J. 8*Flame failure during the running cycle results in a 45 second attempt to restart.
  • If unsuccessful, safety shutoff occurs, requiring manual reset before burner can be restarted.
  • R8182D,E,F mount directly on burner; R8182H,J mount on 4 x 4 in. junction box and include 5 ft (1.5 m) armored capillary with remote sensor.
  • C554A Cadmium Sulfide Flame Detector and a 24 Vac thermostat required.
Power Consumption 9 W
Voltage 120 Vac
Operating Temperature Range High Limit-- 54 C to 116 C; Low Limit-- 43 C to 104 C
Electrical Ratings, Ignition 360 VA
Electrical Ratings, Burner At Full Load-- 4.4 A @ 120 Vac; At Locked Rotor-- 26.4 A @ 120 Vac
