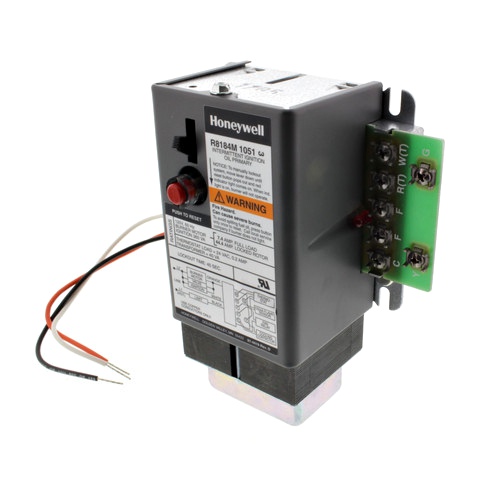

Features: Intermittent ignition is on while the burner is on. Solid state flame sensing circuit. External button to manually reset safety switch after lockout. Enclosed safety switch must be manually reset after safety shutdown. R8184M includes 40 VA transformer and Y and G terminals for connection of cooling equipment. Mounts on standard 4 x 4 in. junction box. C554A Cadmium Sulfide Flame Detector and a 24 Vac thermostat required.
|Dimensions||4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep|
|Temperature Range||-40 C to +54 C (-40 F to +130 F)|
|Timing, Safety Switch||45 sec.|
|Electrical Ratings, Contacts (full load)||7.4 A @ 120 Vac; 3.7 a @ 240 Vac|
