Vent Orientation over pressure taps

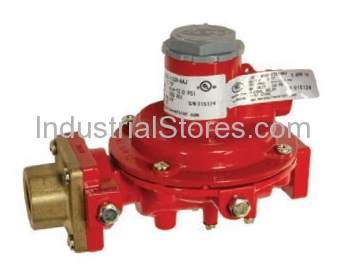

Offers a compact first stage regulator design perfect for tight applications such as underground tank domes. They feature an adjustment range from 9-12 PSIG (factory set @ 10 PSIG), stainless steel internal components, fluorocarbon (FKM) seat discs, molded lip fabric reinforced diaphragms and large aluminum precision machined orifice to minimize freeze ups while providing superior downstream regulation and maximum corrosion resistance against weather or contaminated gas.
Type: First Stage
Max. Inlet Pressure: 250 PSIG
Exterior Finish: Red Powder Coat
Ori ce Size: .14” (Compact)
Diaphragm: Fabric Reinforced NBR Molded Lip O-Ring Bonnet/Body Seal
Relief Type: Internal Relief - Spring Loaded
Bonnet / Body Material: Die Cast Aluminum
Seat Material: Fluorocarbon (FKM)
Lis ngs: CULUS / UL 144
Moun ng Holes: Standard 3-1/2” Center
Pressure Taps: #54 Ori ce 1/8” FNPT Plugged (2)
Relief Travel Stop: Molded in Adjustment Cap -
