Webster 1R111C-4C3 Series R Service Saver Fuel Pump Single Stage 1725Rpm 1-Filter 150psi Counter-Clockwise with Left Port

Webster 1R111C-4C3 Series R Service Saver Fuel Pump Single Stage 1725Rpm 1-Filter 150psi Counter-Clockwise with Left Port

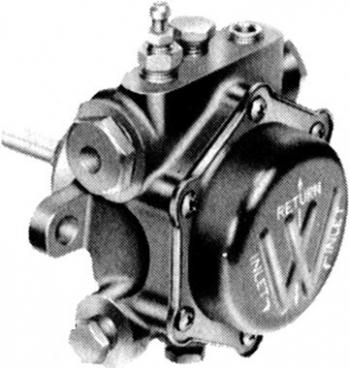

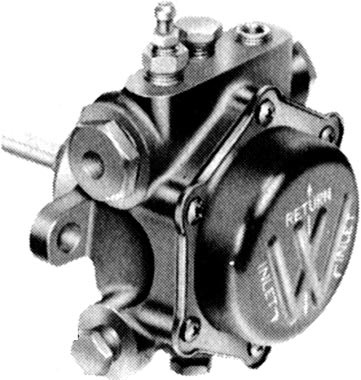

Images for general purposes only. Actual may be different than depicted.
Webster 1R111C-4C3 Series R Service Saver Fuel Pump Single Stage 1725Rpm 1-Filter 150psi Counter-Clockwise with Left Port

Webster 1R111C-4C3 Series R Service Saver Fuel Pump Single Stage 1725Rpm 1-Filter 150psi Counter-Clockwise with Left Port

SKU: 1R111C-4C3
Usually Ships 2 - 4 Days
Rating: (1)
$197.19 /ea
0
$0.00
0
$0.00
0
Webster R Series Service Saver Fuel Units do have single and two-stage models with a capacity of 80 gallons per hour. It features a rotary filter, simple flange mounting, and has an extended shaft length.

Webster Model 1R111C-4C3 is a single-stage Service Saver Fuel Pump with an internal self-cleaning rotary type filter and external filter (recommended with each installation).  Features Double Lip Type Seal, Two Bolt Flange Mounting, and Built-in pressure regulator.

Pump Type Model Single Stage -1725 RPM
Number of Filter Sections 1
Maximum Rated Pressure 150 PSI
Pressure Factory Setting 100 PSI
Pressure Gear Size 1
Rotation Counterclockwise Nozzle Port Left
Porting 1 /8'' NPTF
Maximum Inlet Vacuum 10'' Hg

Following are the Attached files for this product:

Webster R Series Service Saver Fuel Pumps Technical Datasheet

By Thomas

from Mendota Heights MN

Yes, I would recommend this product to a friend or co-worker

5.0 Oil Furnace Pump replacement

Pump works great; good enough customer service on the phone regarding the replacement that the order was filled on the phone -- did not have to go on line to order. Will be ordering more from Industrial Stores.
